24W Economic Type
?? ?Worldwide Scope AC/DC Input
?? ?Regulated output, Low ripple noise
?? ?Small size: 39.5*25.5*22mm
?? ?Protection type: Overload protection / Short circuit protection / Over temperature protection
?? ?Flexible peripheral circuit design, PCB soldering method
?? ?Aluminum shell, Natural cooling
?? ?CE/RoHS certified
Compared with 24W high performance type, There is no EMC circuit, Lightning protection and surge circuit, Pulse group attenuation circuit, Output common mode differential mode filter and output filter capacitor.
??Click on the ACDC power?module below to learn more
| 系列標(biāo)題 | 功率(W) | 輸入電壓(VAC/DC) | 輸出電壓 (VDC) |
輸出電路 | 隔離耐壓(VAC) | 封裝形狀 | 封裝尺寸 (mm) |
|
|---|---|---|---|---|---|---|---|---|

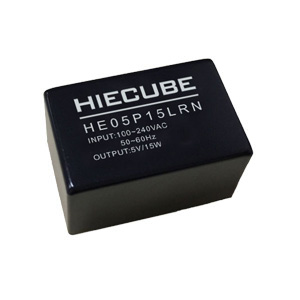

| HE05P15LRN | 15 | 85~265VAC/100~370VDC | 5 | Single output | 3000 | DIP | 39.5*25.5*22 |
|
| HE06P15LRN | 15 | 85~265VAC/100~370VDC | 6 | Single output | 3000 | DIP | 39.5*25.5*22 |
|
| HE09P24LRN | 24 | 85~265VAC/100~370VDC | 9 | Single output | 3000 | DIP | 39.5*25.5*22 |
|
| HE12P24LRN | 24 | 85~265VAC/100~370VDC | 12 | Single output | 3000 | DIP | 39.5*25.5*22 |
|
| HE15P24LRN | 24 | 85~265VAC/100~370VDC | 15 | Single output | 3000 | DIP | 39.5*25.5*22 |
|
| HE20P24LRN | 24 | 85~265VAC/100~370VDC | 20 | Single output | 3000 | DIP | 39.5*25.5*22 |
|
| HE24P24LRN | 24 | 85~265VAC/100~370VDC | 24 | Single output | 3000 | DIP | 39.5*25.5*22 |
|
| HE28P24LRN | 24 | 85~265VAC/100~370VDC | 28 | Single output | 3000 | DIP | 39.5*25.5*22 |
|
| HE36P24LRN | 24 | 85~265VAC/100~370VDC | 36 | Single output | 3000 | DIP | 39.5*25.5*22 |
|
