7W High Performance
? Worldwide universal range AC and DC input
? Built-in lightning protection surge,pulse group attenuator
? Synchronous rectified, differential mode filtering, common mode filtered output, Regulated, low ripple noise output
? Small size: 37*28.5*19.5mm
? Protection type: overload protection, short circuit protection, overheat protection
? Built-in EMC circuit Meets EN55032 ClassB rating
? No need for peripheral circuit design, PCB soldering installation
? CE/RoHS certified
? Click on the ACDC power module below to learn more
| 系列標(biāo)題 | 功率(W) | 輸入電壓(VAC/DC) | 輸出電壓 (VDC) |
輸出電路 | 隔離耐壓(VAC) | 封裝形狀 | 封裝尺寸 (mm) |
|
|---|---|---|---|---|---|---|---|---|

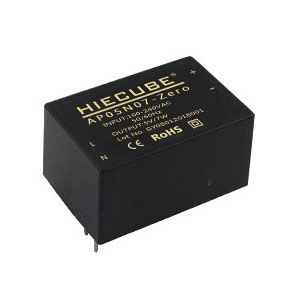

| AP05N07-Zero | 7 | 85~265VAC/100~370VDC | 5 | Single output | 3000 | DIP | 37*28.5*19.5mm |
|
| AP06N07-Zero | 7 | 85~265VAC/100~370VDC | 6 | Single output | 3000 | DIP | 37*28.5*19.5mm |
|
| AP09N07-Zero | 7 | 85~265VAC/100~370VDC | 9 | Single output | 3000 | DIP | 37*28.5*19.5mm |
|
| AP12N07-Zero | 7 | 85~265VAC/100~370VDC | 12 | Single output | 3000 | DIP | 37*28.5*19.5mm |
|
| AP15N07-Zero | 7 | 85~265VAC/100~370VDC | 15 | Single output | 3000 | DIP | 37*28.5*19.5mm |
|
| AP20N07-Zero | 7 | 85~265VAC/100~370VDC | 20 | Single output | 3000 | DIP | 37*28.5*19.5mm |
|
| AP24N07-Zero | 7 | 85~265VAC/100~370VDC | 24 | Single output | 3000 | DIP | 37*28.5*19.5mm |
|
